    Soil Moisture Sensor

    Soil Moisture Sensor

    Soil Moisture Sensor
    TRIOE
    IoT
    Embedded Systems

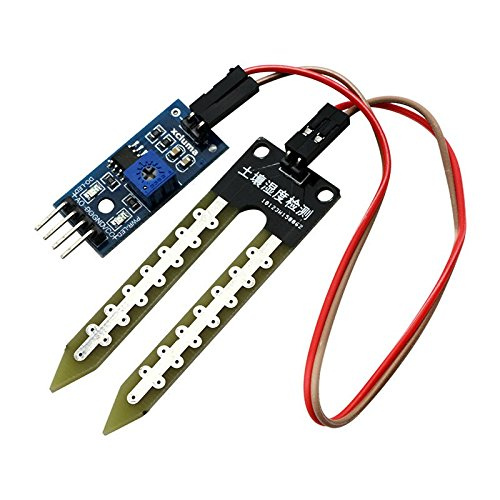

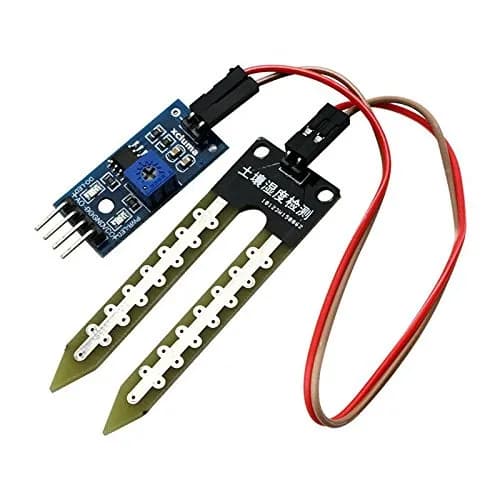

    The soil moisture sensor is used to measure the moisture content of soil. It is commonly used in gardening, agriculture, and environmental monitoring systems.

    Quick Actions

    1234

    Downloads

    567

    Likes

    Specifications

    VCCPower supply (3.3V or 5V, depending on the module)
    GNDGround (-)
    AOAnalog output signal

    Sample Code

    Crash Course: Using the Soil Moisture Sensor

    Objective

    Teach learners how to use the soil moisture sensor to measure soil moisture, and integrate its readings with a TRIOE microcontroller.

    Materials Required

    • Soil Moisture Sensor Module
    • TRIOE
    • Breadboard and jumper wires
    • USB cable for programming the TRIOE
    • Computer with Arduino IDE installed

    Steps

    1Understand the Soil Moisture Sensor

    • The soil moisture sensor measures the moisture content of soil.
    • Pin Description: VCC: Power supply (3.3V or 5V), GND: Ground, AO: Analog output signal.

    2Set Up the Circuit

    • Connect the VCC pin to the TRIOE's 5V.
    • Connect the GND pin to the TRIOE's GND.
    • Connect the AO pin to the TRIOE's analog pin A0.

    3Install the Moisture Sensor Library

    • Open the Arduino IDE.
    • Go to Sketch > Include Library > Manage Libraries.
    • Search for 'MoistureSensor' and install the library.
    • Also, install the 'MoistureSensor' library, if prompted.

    Video Tutorial: Using the Soil Moisture Sensor

    Video Player Placeholder

    Common Applications

    Application 1

    Description of application 1.

    Application 2

    Description of application 2.

    Application 3

    Description of application 3.

    #include <MoistureSensor.h>

    MoistureSensor moistureSensor;

    void setup() {
    	Serial.begin(9600);
    	moistureSensor.begin();
    }

    void loop() {
    	int moisturePercentage = moistureSensor.readPercentage();

    	Serial.print("Moisture: ");
    	Serial.print(moisturePercentage);
    	Serial.println(" %");

    	delay(1000);
    }
