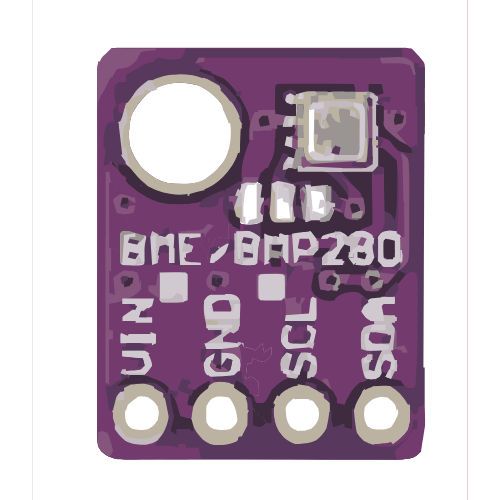

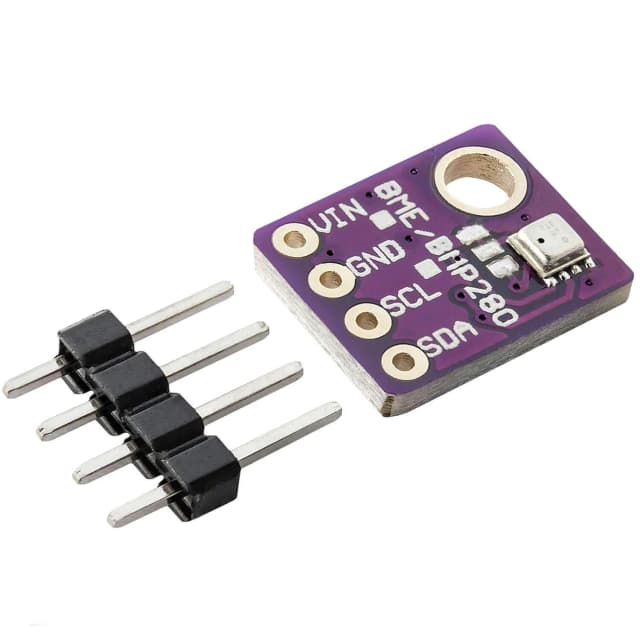

BME280 Environmental Sensor Module

BME280 Environmental Sensor Module

BME280
Environmental Sensor
Temperature
Humidity
Pressure
TRIOE
IoT
Embedded Systems

The BME280 is a highly accurate sensor that measures temperature, humidity, and atmospheric pressure. It is commonly used in weather stations, IoT projects, and environmental monitoring systems.

Quick Actions

3456

Downloads

1011

Likes

Specifications

VCCPower supply (3.3V or 5V, depending on the module)
GNDGround (-)
SDAI2C data line
SCLI2C clock line

Sample Code

#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BME280.h>
#define BME280_ADDRESS 0x76 // I2C address of the BME280 sensor
Adafruit_BME280 bme; // Create an instance of the BME280 sensor
void setup() {
Serial.begin(9600);
if (!bme.begin(BME280_ADDRESS)) {
Serial.println("Could not find a valid BME280 sensor, check wiring!");
while (1);
}
}
void loop() {
Serial.print("Temperature: ");
Serial.print(bme.readTemperature());
Serial.println(" °C");
Serial.print("Humidity: ");
Serial.print(bme.readHumidity());
Serial.println(" %");
Serial.print("Pressure: ");
Serial.print(bme.readPressure() / 100.0F);
Serial.println(" hPa");
delay(1000);
}

Crash Course: Using the BME280 Environmental Sensor Module

Objective

Teach learners how to use the BME280 sensor module to measure temperature, humidity, and atmospheric pressure, and integrate its readings with a TRIOE microcontroller.

Materials Required

  • BME280 Sensor Module
  • TRIOE
  • Breadboard and jumper wires
  • USB cable for programming the TRIOE
  • Computer with Arduino IDE installed

Steps

1Understand the BME280 Sensor

  • The BME280 measures: Temperature in degrees Celsius, Humidity as a percentage, Pressure in hPa (hectopascal).
  • Communication Protocols: I2C (2-wire communication with SDA and SCL), SPI (optional for advanced users).

2Set Up the Circuit

  • Connect the VCC pin to the TRIOE's 5V.
  • Connect the GND pin to the TRIOE's GND.
  • Connect the SDA pin to the TRIOE's A4 pin.
  • Connect the SCL pin to the TRIOE's A5 pin.

3Install the BME280 Library

  • Open the Arduino IDE.
  • Go to Sketch > Include Library > Manage Libraries.
  • Search for 'Adafruit BME280' and install the library.
  • Also, install the 'Adafruit Unified Sensor' library, if prompted.
