Mission Mode 4
Think It, Shape It, Save It: 3D MODELING
STORY
—
Rainfall was Amir's biggest enemy. Every storm soaked his prototype energy systems. With Captain T's help and TRIOE's 3D modeling tools, he learns to design a rainproof housing — proving that building smarter starts with modeling smarter.
180:00 / 180:00
Mission Objectives
Upload your 3D design files using www.onshape.com links for Amir's rainproof housing. Both STL files and design documentation are required to complete this mission. Export the files with Fine Resolution and upload them here. Use Millimeter as the unit. Start With Bottom Casing.
Upload BottomCasing.stl
Upload TopCasing.stl
Bottom Casing Onshape Link
Upload Files Here
No file chosen
No file chosen
Upload Onshape Link Here
No link provided

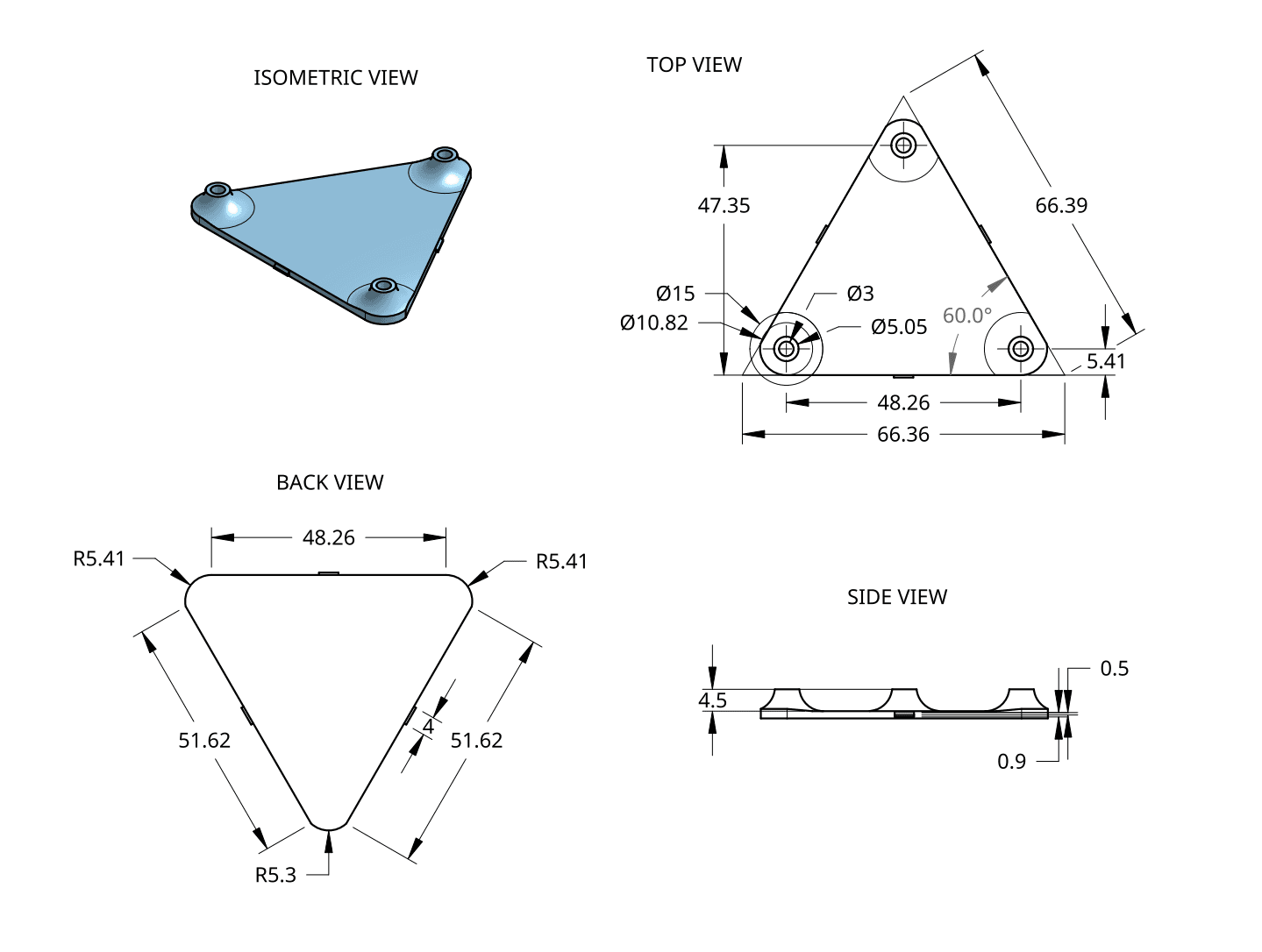

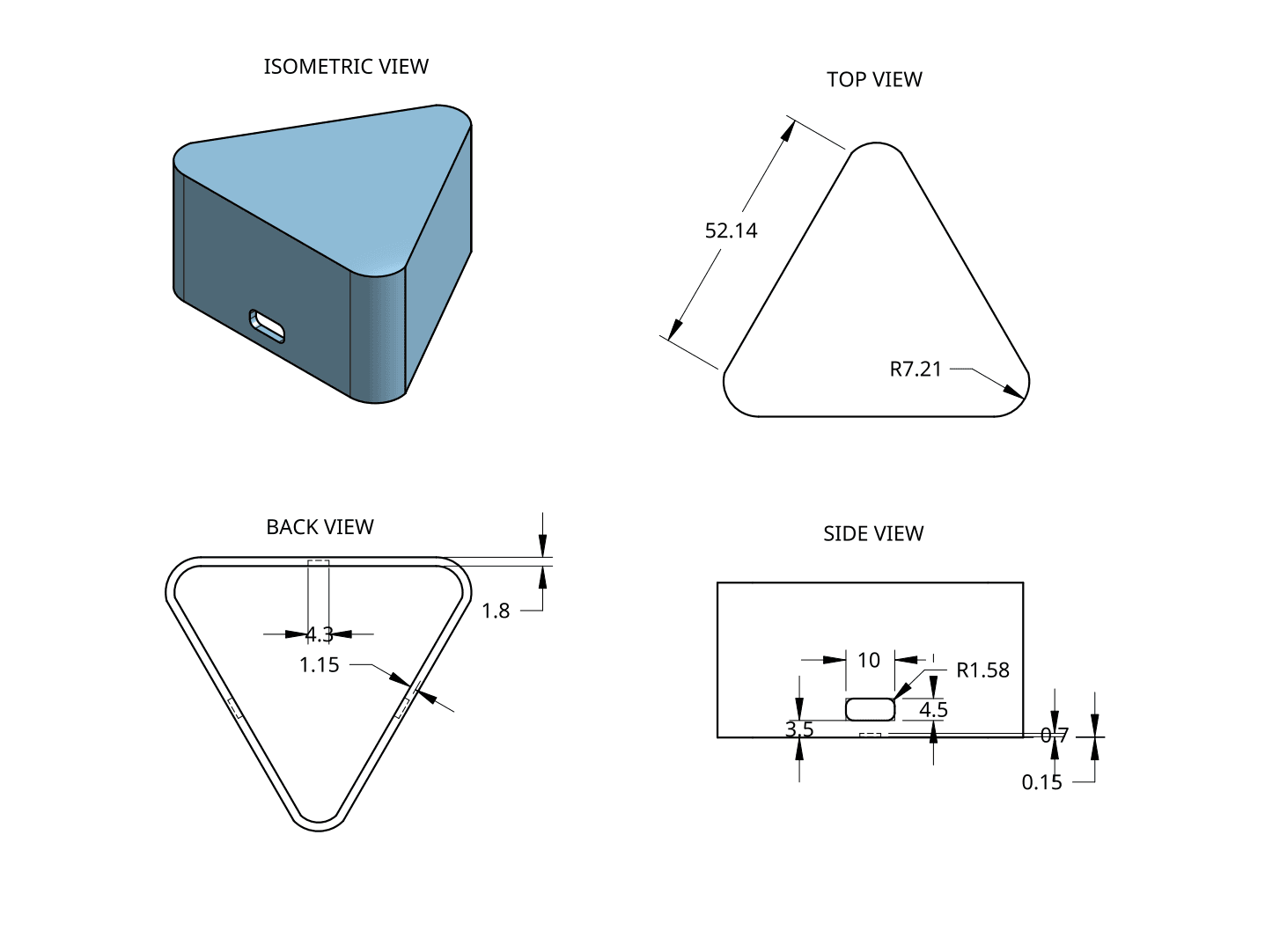

Design Reference
.png&w=48&q=75){kind=small}
Design Validation Monitor
TRIOE 3D Design Studio - Rainproof Housing File Upload System
Connected to file validation engine
Upload Status:
- BottomCasing.stl: Waiting for upload...
- TopCasing.stl: Waiting for upload...
Documentation Links:
- Bottom Casing Onshape Link: Waiting for link...
- Top Casing Onshape Link: Optional
Upload your STL files and provide Onshape links, then press "Verify Design".
