Which Kit Is Right For Me?
The AGRI-AGUA KIT is for smart farming, the STEAM KIT for education, and the DRM KIT for disaster response.

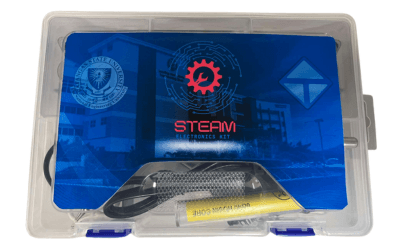

ELECTRONICS KIT
An educational kit fostering Science, Technology, Engineering, Arts, and Mathematics.

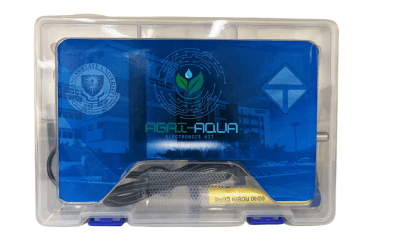

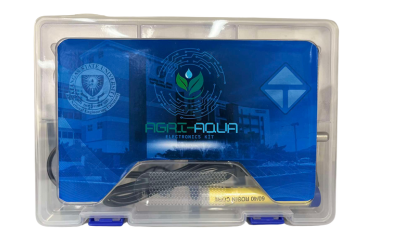

AGRI-AGUA KIT
A kit designed for agricultural and water management solutions.

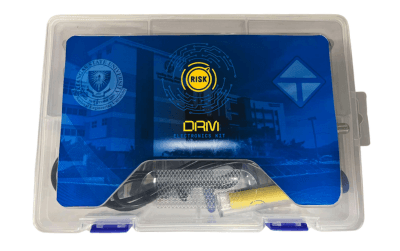

DRM KIT
A kit tailored for disaster risk management and emergency response.
ELECTRONICS KIT
An educational kit fostering Science, Technology, Engineering, Arts, and Mathematics.
AGRI-AGUA KIT
A kit designed for agricultural and water management solutions.
DRM KIT
A kit tailored for disaster risk management and emergency response.
| Component | ELECTRONICS KIT | AGRI-AGUA KIT | DRM KIT |
|---|---|---|---|
| Main Board | TRIOE - Main Board | TRIOE - Main Board | TRIOE - Main Board |
| Custom PCB | 5x TRIOE - General Purpose Strip | 5x TRIOE - General Purpose Strip | 5x TRIOE - General Purpose Strip |
| Sensors | BME280 (I2C), Ultrasonic (HCSR04) | BME280 (I2C), DHT11, Ultrasonic (HCSR04), Soil Moisture | BME280 (I2C), Ultrasonic (HCSR04) |
| Display | 0.96" SSD1306 OLED (128x64) | 0.96" SSD1306 OLED (128x64) | 0.96" SSD1306 OLED (128x64) |
| Actuators | Servo Motor (SG90) | Servo Motor (SG90), Mini Water Pump (3-6V DC), Relay Module (5V, 1 Channel) | Servo Motor (SG90) |
| Additional Components | 470 Ohm & 10k Ohm Resistors, LED Assorted (Red, Green, Blue), 10x 2-pin tactile push buttons, 2x 10k Potentiometers | 40x Jumper Wires, Breadboard (830 points), USB Cable (Type A to Type B) | 470 Ohm & 10k Ohm Resistors, LED Assorted (Red, Green, Blue), 10x 2-pin tactile push buttons, 2x 10k Potentiometers |
| Technical Specs | Core: 2, Clock: Tensilica Xtensa LX106 (160-240MHz), Bluetooth: Classic & BLE, Architecture: 32-bit, WiFi: IEEE802.11 b/g/n, RAM: 32KB | Core: 2, Clock: Tensilica Xtensa LX106 (160-240MHz), Bluetooth: Classic & BLE, Architecture: 32-bit, WiFi: IEEE802.11 b/g/n, RAM: 32KB | Core: 2, Clock: Tensilica Xtensa LX106 (160-240MHz), Bluetooth: Classic & BLE, Architecture: 32-bit, WiFi: IEEE802.11 b/g/n, RAM: 32KB |
| Key Features | LX7 microprocessor with single precision FPU, up to 240 MHz, Full-speed USB 2.0 OTG, USB Serial/JTAG controller, ADC, touch sensor, temperature sensor, Bluetooth 5, Bluetooth mesh | LX7 microprocessor with single precision FPU, up to 240 MHz, Full-speed USB 2.0 OTG, USB Serial/JTAG controller, ADC, touch sensor, temperature sensor, Bluetooth 5, Bluetooth mesh | LX7 microprocessor with single precision FPU, up to 240 MHz, Full-speed USB 2.0 OTG, USB Serial/JTAG controller, ADC, touch sensor, temperature sensor, Bluetooth 5, Bluetooth mesh |
| Power | Operating voltage/Power supply: 3.0 ~ 3.6 V | Operating voltage/Power supply: 3.0 ~ 3.6 V | Operating voltage/Power supply: 3.0 ~ 3.6 V |
