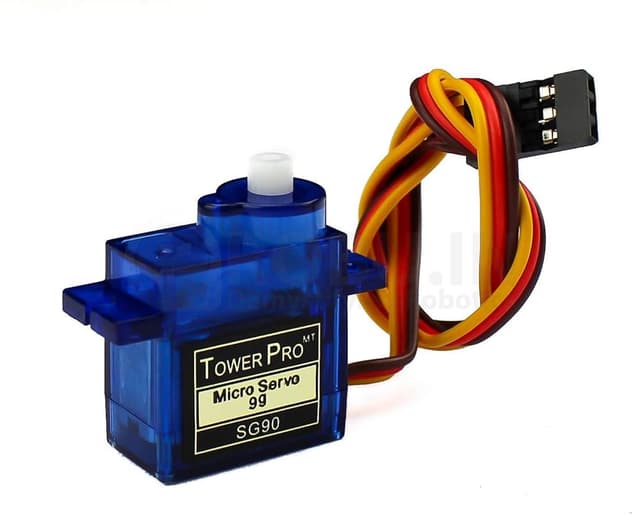

Servo Motor (SG90 Micro Servo)

Servo Motor (SG90 Micro Servo)

Servo Motor
SG90
Actuator
Robotics
Arduino
IoT
Embedded Systems

A servo motor is a compact and efficient actuator commonly used for precise position control in robotics, automation, and electronics projects. It uses PWM (Pulse Width Modulation) signals to control the angle of rotation.

Quick Actions

1234

Downloads

567

Likes

Pin Configuration

VCCPower supply (4.8V - 6V)
GNDGround (-)
SIGNALPWM control signal

Specifications

Operating Voltage4.8V to 6V
Angle Range0° to 180° (standard servos)
Operating Speed0.1 sec/60° at 4.8V
Torque1.8 kg-cm (at 4.8V)
Control SignalPWM (Pulse Width Modulation)
Weight~9g (SG90 Micro Servo)
Dimensions22.2mm x 11.8mm x 31mm
